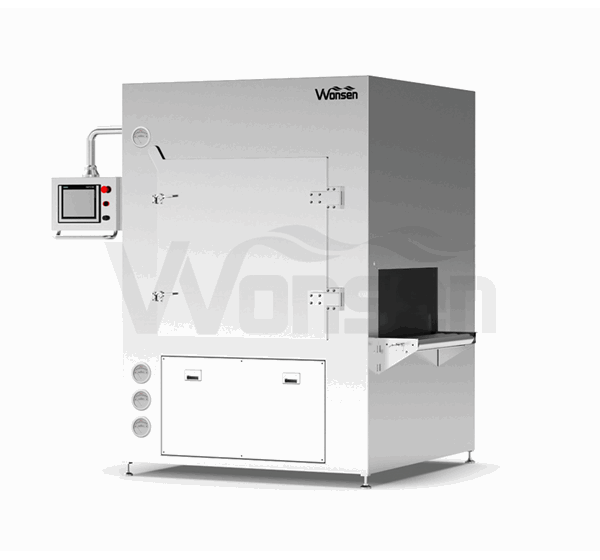

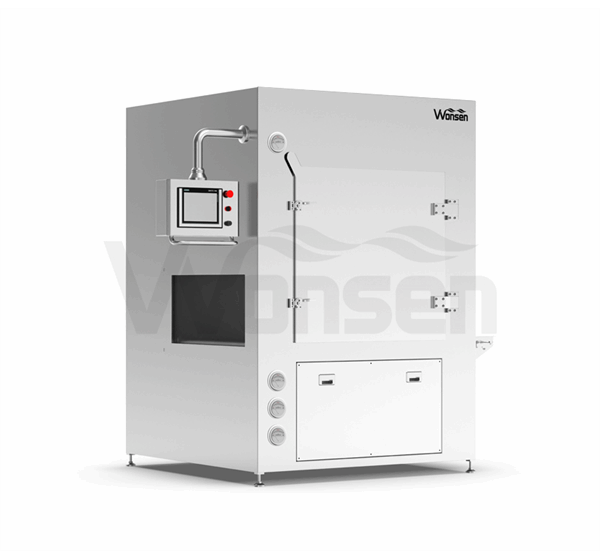

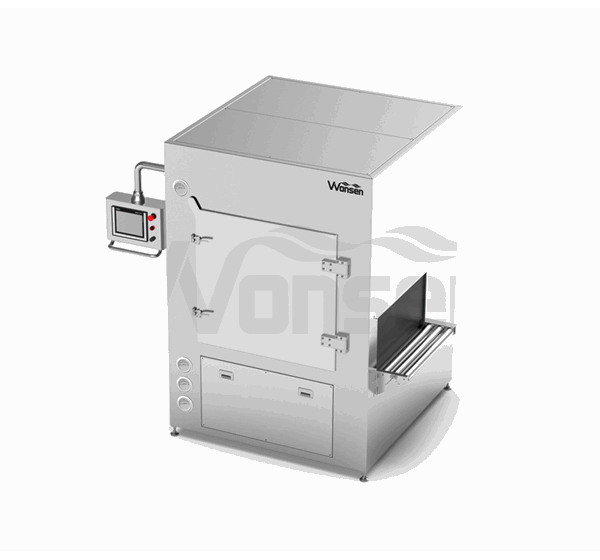

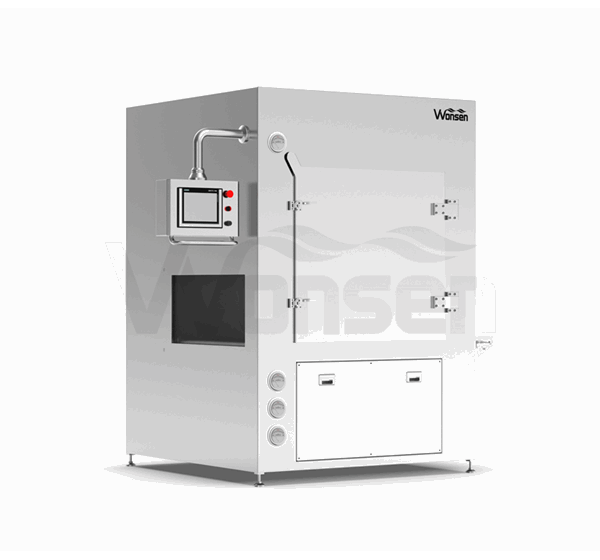

Air Shower
Ideal for material transfer processes requiring only outer packaging dust removal, without surface sterilization.
Purifies material package surfaces before transfer by removing outer packaging dust and impurities. It prevents contaminants from entering clean production areas, ensuring stable cleanroom pressure and environmental cleanliness.
Working Principle
The material packages are conveyed to the front end of the equipment, triggering the sensor to open the inlet door. Once the packages enter the chamber completely, the inlet door closes for dust blowing and sweeping. After the preset dust removal time is reached, the outlet door opens, and the packages are transported to the next station.
Features
Adjustable Multi-Angle Nozzles: Efficiently sweeps and cleans the surface of the material packages.
Three-Stage Filtration System: Equipped with primary, medium, and high-efficiency filters to effectively capture dust particles.
Smart Control System: Features interlocking inlet and outlet doors, with fully adjustable conveying speeds.
Internal Air Circulation: Recirculates internal air to maintain cleanroom pressure and environmental cleanliness.
Important Notes
Material Compatibility: This equipment is primarily designed for PE plastic bags. Woven bags have numerous seams and wrinkles, making it difficult to thoroughly blow away dust.
Dust Removal Only: This equipment only provides dust removal and purification functions and has no sterilization capabilities. If microbial sterilization of the outer packaging is required, please select the Tunnel Air Shower UV Sterilization Chamber.
