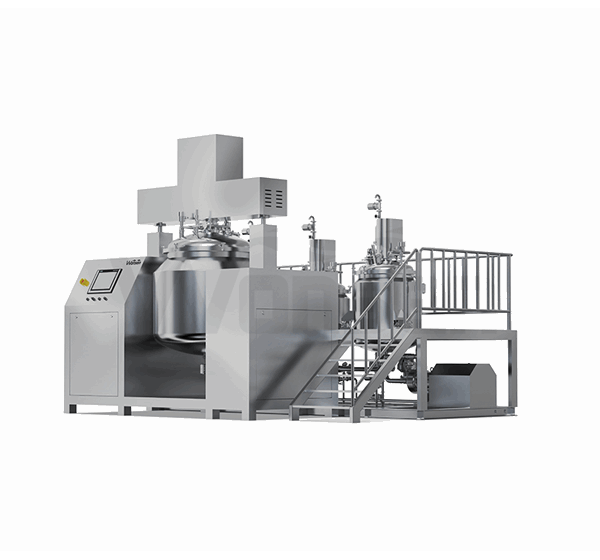

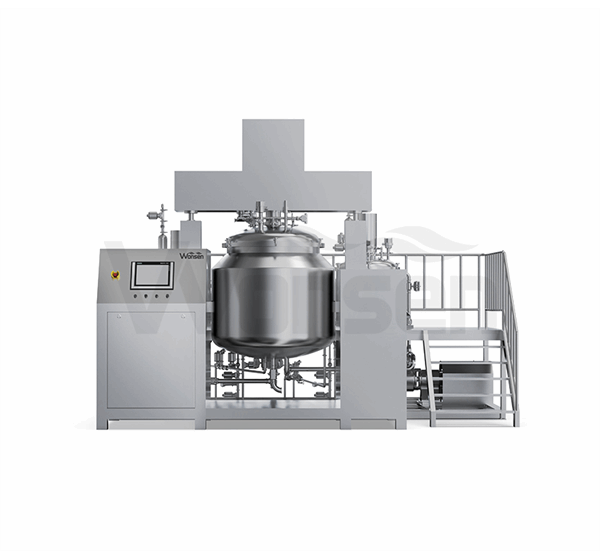

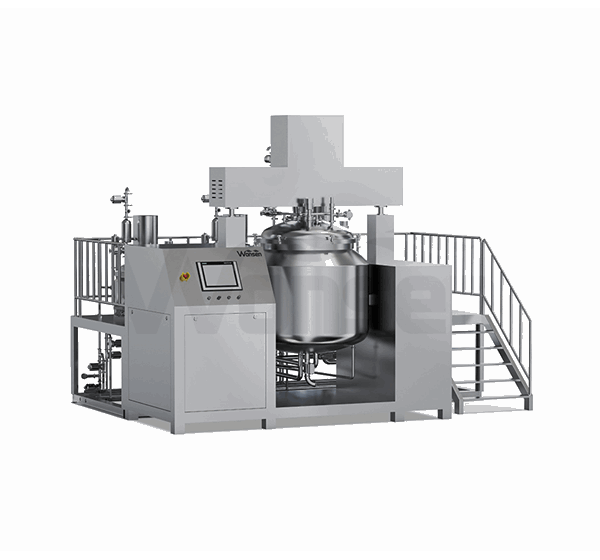

Cream Vacuum Homogenizing Emulsifier

Cream Vacuum Homogenizing Emulsifier

Applicable to the large-scale production of creams and lotions, pharmaceutical ointments, daily chemical pastes.

    The cream vacuum homogenizing emulsifier integrates mixing, dispersing, homogenizing, emulsifying, and vacuum degassing functions. It performs high-shear emulsification on high-viscosity materials under a vacuum environment, making it ideal for the large-scale production of cosmetic creams and lotions, topical pharmaceutical ointments, daily chemical pastes, and various creamy emulsified foods.

Application

The cream vacuum homogenizing emulsifier integrates mixing, dispersing, homogenizing, emulsifying, and vacuum degassing functions. It performs high-shear emulsification on high-viscosity materials under a vacuum environment, and is widely applicable to the large-scale production of cosmetic creams and lotions, topical pharmaceutical ointments, daily chemical pastes, and various creamy emulsified foods.


Features

1. Highly Efficient Homogenizing & Emulsifying: Integrates multiple functions including mixing, dispersing, homogenizing, and emulsifying into one unit, enabling streamlined production processes.

2. Vacuum Degassing & Defoaming: Effectively eliminates air bubbles within the materials, significantly enhancing product stability and overall quality.

3. High-Viscosity Adaptability: Capable of handling materials with a viscosity of up to 100 Pa·s, easily accommodating diverse formulations and process requirements.

4. Stable & Efficient Production: Features a high level of intelligent automation, ensuring smooth and highly reliable performance.


Technical parameter

Model

WSZRG-350

WSZRG-500

WSZRG-750

WSZRG-1000

WSZRG-1500

WSZRG-2000

Effective Volume (L)

350

500750100015002000
Working Pressure (bar)

-1~2.5

Operating Temperature (℃)

-10~150

Speed of Agitator (rpm)

≤40

Material Viscosity (mPas)

≤100000

Homogenizer Speed (rpm)

≤3500

Overall dimensions (mm)

3700*2600*2500

(3600)

4000*2900*2950

(4000)

3780*3200*3050

(4380)

3900*3400*3150

(4550)

4000*4100*3750

(5650)

4850*4300*3600

Total Power (kW)

171924294246


Other products

Circulating Vacuum Homogenizing Emulsifier

Ideal for producing emulsions and creams in the cosmetics and fine chemicals sectors.

High-Pressure Aseptic Homogenizer

Suitable for aseptic production in the pharmaceutical and biopharmaceutical fields.

High-Pressure Homogenizer

Suitable for nano-scale material preparation and cell wall disruption.
