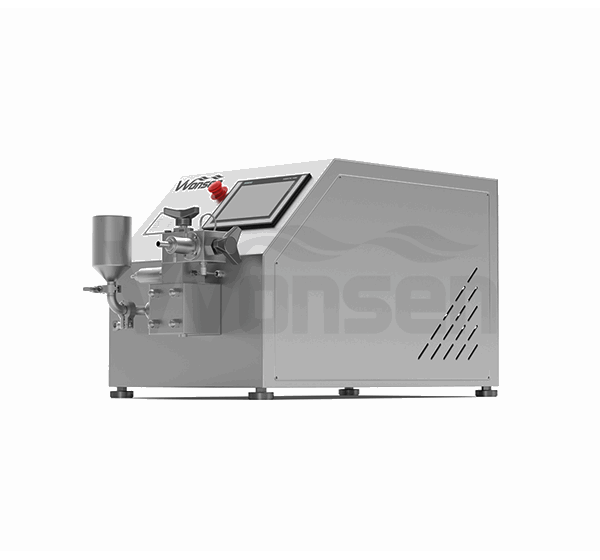

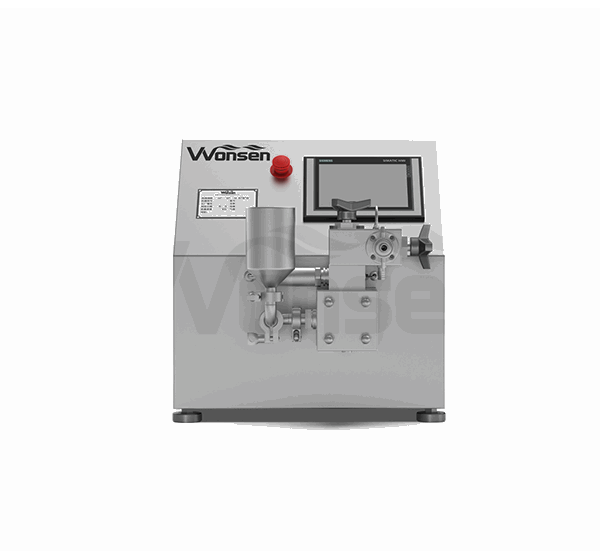

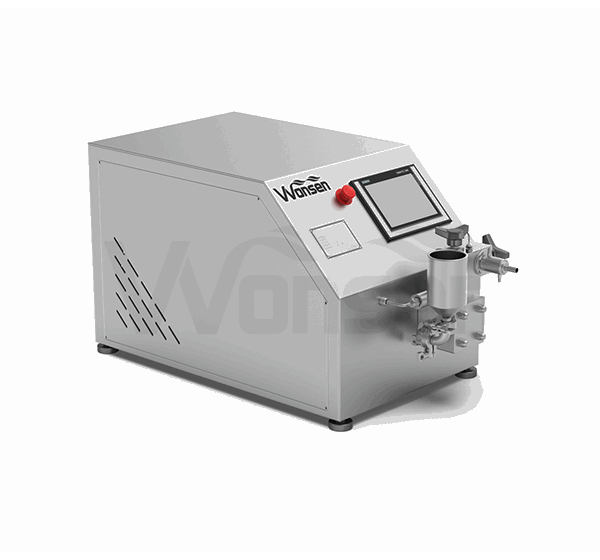

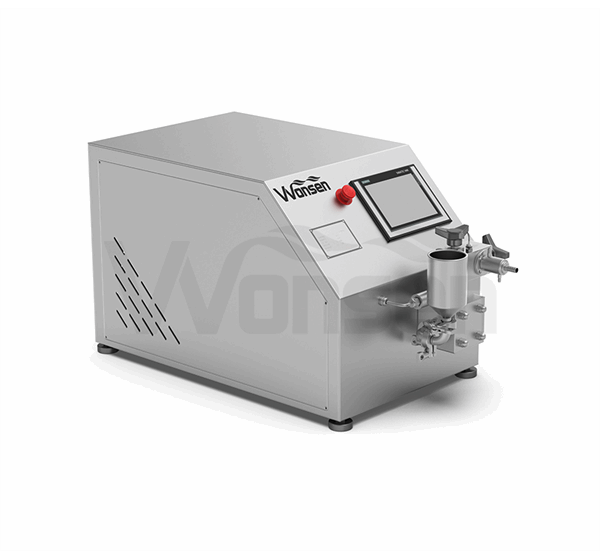

High-Pressure Homogenizer
High-Pressure Homogenizer
Suitable for nano-scale material preparation and cell wall disruption.
Perfect for processes demanding intense shear and fine refinement, like nano-scale material preparation and cell disruption. It is extensively applied in the pharmaceutical, food, and nanomaterial sectors.
Working principle
High-pressure homogenizers use high-pressure pumps to push materials through homogenization valve gaps at high pressure. The resulting high-speed flow, along with intense shear, impact, and cavitation effects, reduces particles or droplets to a size of φ0.2-10 μm, creating a uniform and stable emulsion or suspension.
Features
High-Efficiency Crushing: Breaks materials down to sub-micron or nano-scale;
Enhanced Quality: Improves material uniformity and stability;
Reliable Performance: Highly intelligent with a modular design for easy maintenance.
Technical parameter
Flow (L/H) | pressure (MPa) | Motor Power(KW) |
| 10 | 200 | 3 |
| 20 | 150 | 3 |
| 50 | 100 | 3 |
| 60 | 60 | 3 |
| 100 | 40/120 | 3/3.5 |
| 150 | 30/100 | 3/7.5 |
| 200 | 25/70/100 | 3/5.5/11 |
300 | 20/40/60/75/100 | 3/5.5/7.5/11/15 |
| 500 | 20/40/50/75 | 5.5/7.5/11/15 |
| 1000 | 15/20/30/40/60/75/100 | 5.5/7.5/11/15/22/30/37 |
| 1200 | 18/50 | 7.5/22 |
| 1500 | 20/40/50/100/150 | 11/22/30/55/75 |
| 2000 | 15/20/30/60/80/10 | 11/15/22/45/55/75 |
| 3000 | 20/25/30/40/6 | 22/30/37/55/75 |
| 4000 | 15/25/35/5 | 22/37/55/75 |
| 5000 | 12/20/25/4 | 22/37/45/75 |
