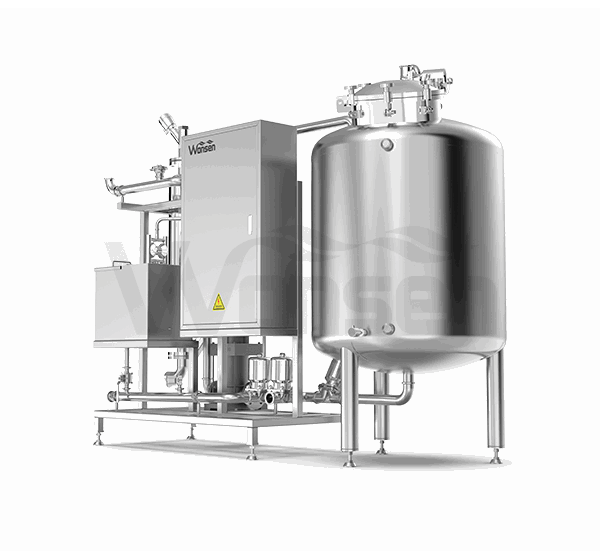

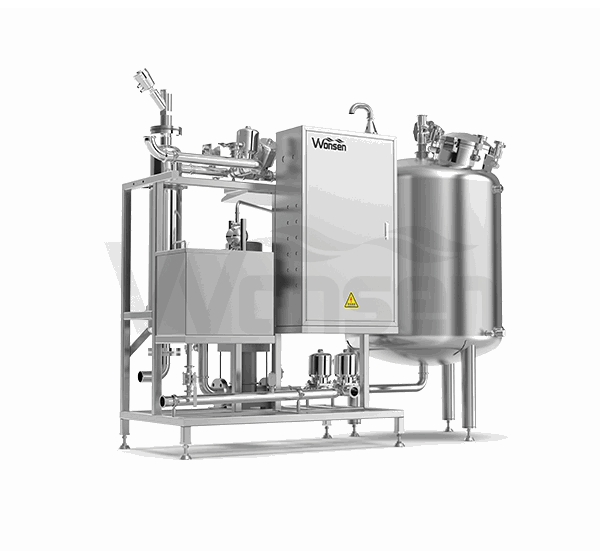

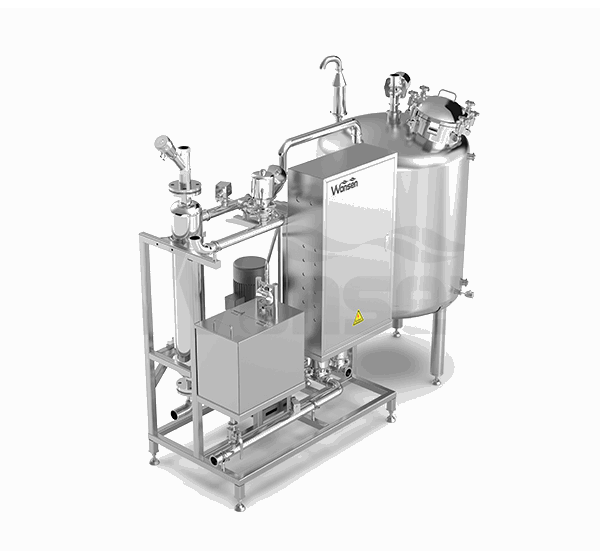

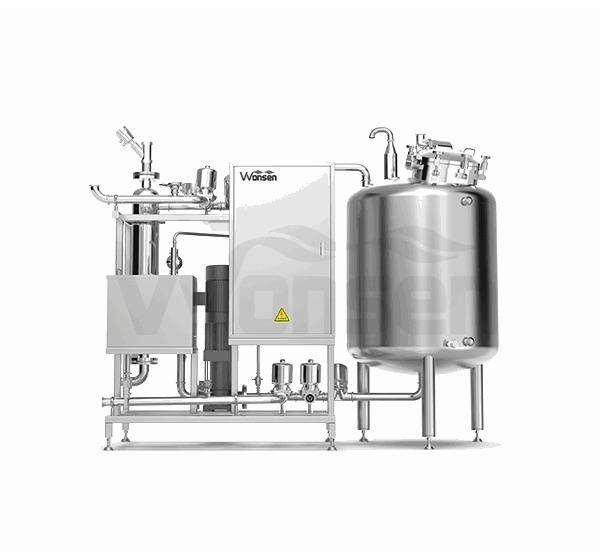

Fully Automatic CIP System
Fully Automatic CIP System
Designed for the Clean-In-Place (CIP) of equipment used in the solid dosage manufacturing process.
Designed for CIP cleaning in solid dosage production, this machine pairs seamlessly with fluidized beds, coating machines, and wet granulators. It is also ideal for industrial cleaning in the pharmaceutical, food, and fine chemical sectors, and is fully GMP-compliant.
Working principle
This machine consists of a booster pump, a heat exchanger, a water storage tank, and a control system. The booster pump pressurizes various water sources to clean the inner surfaces of the equipment. Hot water is generated by heating tap water through the heat exchanger. The dosage of the cleaning agent is controlled by valves before being mixed and fed into the booster pump.
The cleaning program is set according to process requirements. Upon completion of the cleaning cycle, compressed air is introduced as programmed to blow dry the residual water in the pipelines. Once the cleaned equipment is completely dried, it can be put back into production.
Features
Built-in Heating: Optional heat exchanger included—no external hot water source required.
Multi-Device Compatibility: The water outlet supports simultaneous CIP cleaning for multiple connected machines.
Smart & Simple: Easily set and recall cleaning programs via the touch screen. Highly automated and user-friendly.
Technical parameter
| Model | ZQX-5 | ZQX-10 | ZQX-20 | |
| Total Power(kw) | 1.5 | 3 | 3 | |
| Flow(t/h) | 5 | 10 | 20 | |
| Working Pressure(MPa) | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | |
| Steam Pressure(MPa) | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | |
| Steam Consumption(kg/h) | 400 | 800 | 800 | |
| Compressed Air Pressure(MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Compressed Air Consumption(m3/min) | 2 | 2 | 2 | |
| Weight(kg) | 500 | 500 | 500 | |
| Overall dimensions(mm) | 2150*900*1850 | 2265*950*1960 | 2265*950*1960 | |
