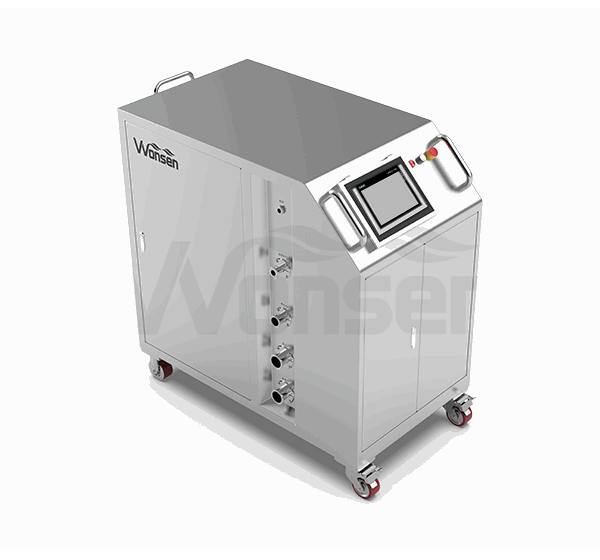

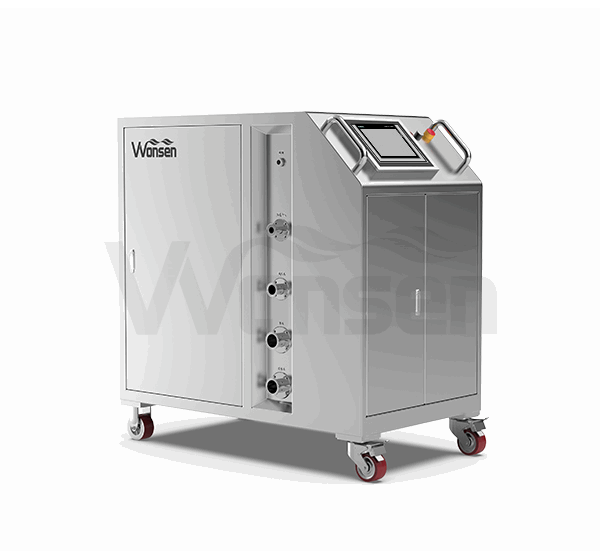

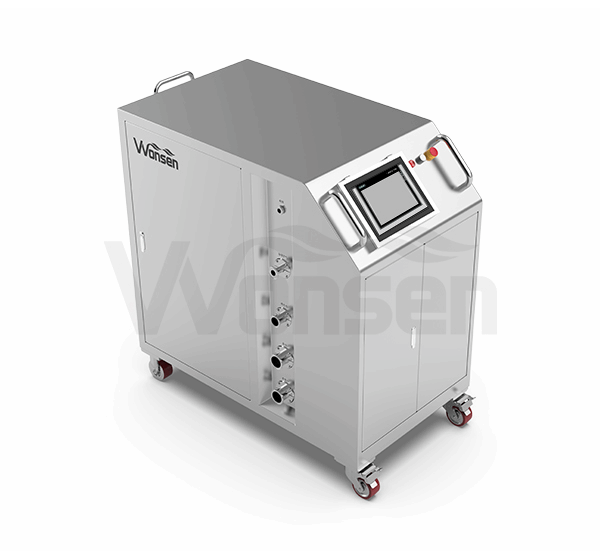

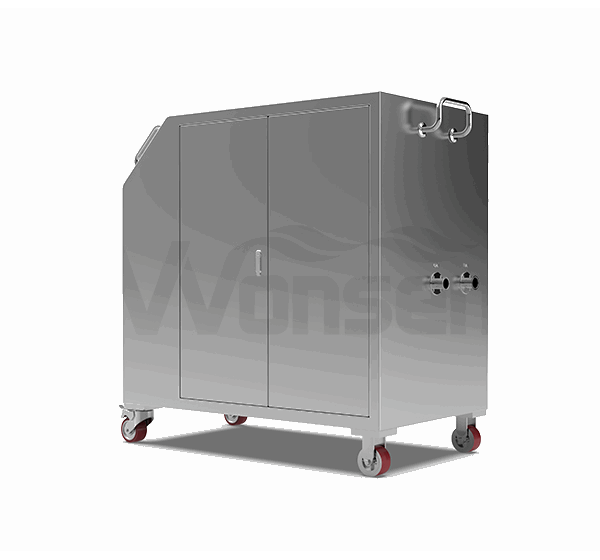

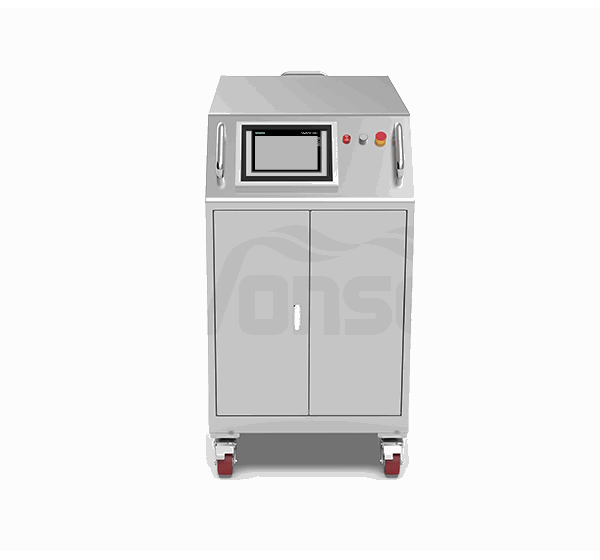

Mobile Washer
Ideal for cleaning and sanitizing critical components in pharmaceutical, food, and fine chemical equipment.
Our mobile cleaning machine is compact, user-friendly, highly sealed, and highly versatile. Ideal for cleaning and sanitizing critical components in pharmaceutical, food, and fine chemical equipment, it is fully GMP-compliant processing equipment.
Working Principle
The booster pump provides the pressure required to deliver the mixture of cleaning liquid and water. Different water sources can be accessed by controlling their respective inlet valves through various water source interfaces. The dosage of the cleaning agent is adjusted via valves before being mixed and fed into the booster pump. Driven by the booster pump, the system generates an output flow rate based on the parameters specified in the pump's head-flow performance curve. The output flow rate varies in accordance with changes in pressure.
Features
Flexible Water Supply: Features three water inlet options. The outlet supports three-way or four-way manifolds for simultaneous multi-machine cleaning.
One-Person Operation: Equipped with a 360° rotating nozzle and a high-pressure spray gun, allowing a single operator to complete the barrel cleaning cycle effortlessly.
Highly Mobile: Mounted on heavy-duty casters for effortless maneuverability.
Easy Maintenance: Simple and streamlined design for quick installation and disassembly.
Technical parameter
| Model | QXY-5 | QXY-10 | QXY-20 | |
| Flow(t/h) | 5 | 10 | 20 | |
| Total Power(kw) | 1.5 | 3.0 | 4.0 | |
| Working Pressure(MPa) | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | |
| Compressed Air Pressure(MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Compressed Air Consumption(m3/min) | 2 | 2 | 2 | |
| Weight(kg) | 200 | 220 | 220 | |
| Overall dimensions(mm) | 1300*700*1250 | 1300*700*1250 | 1300*700*1250 | |
