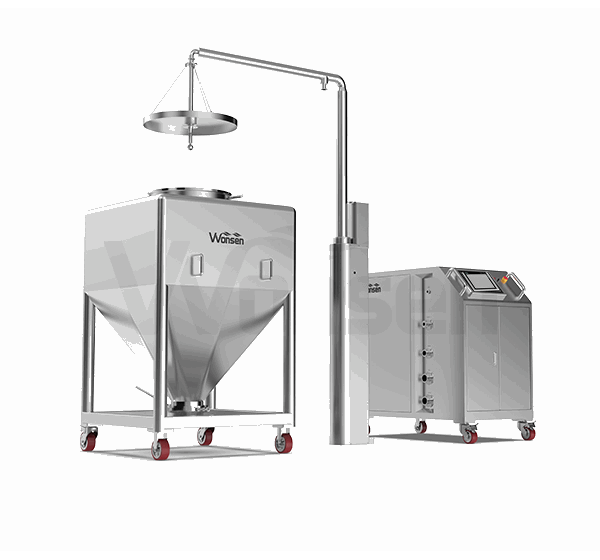

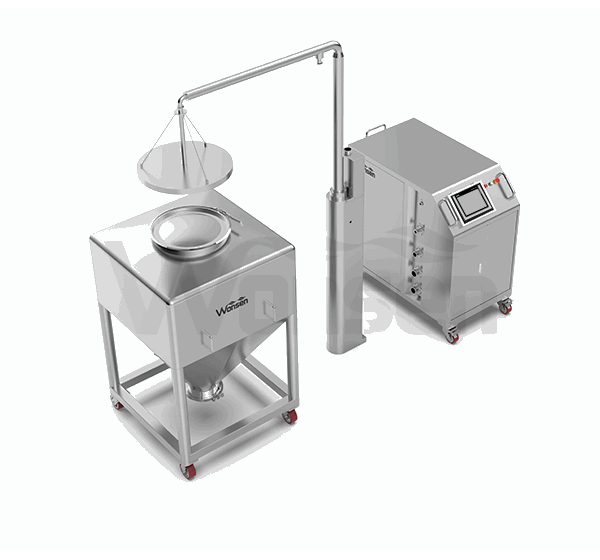

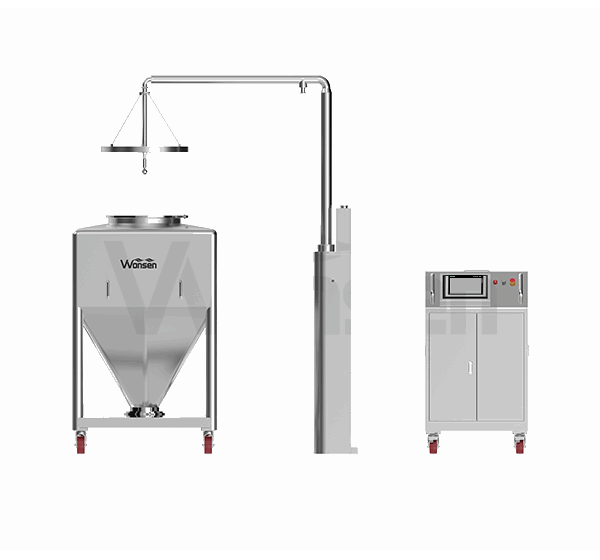

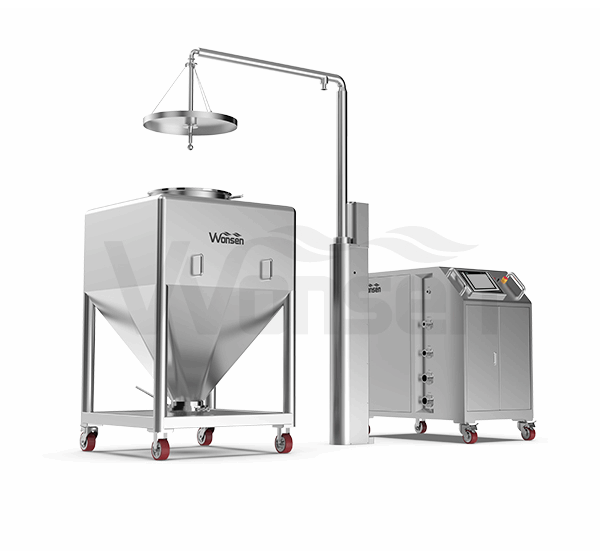

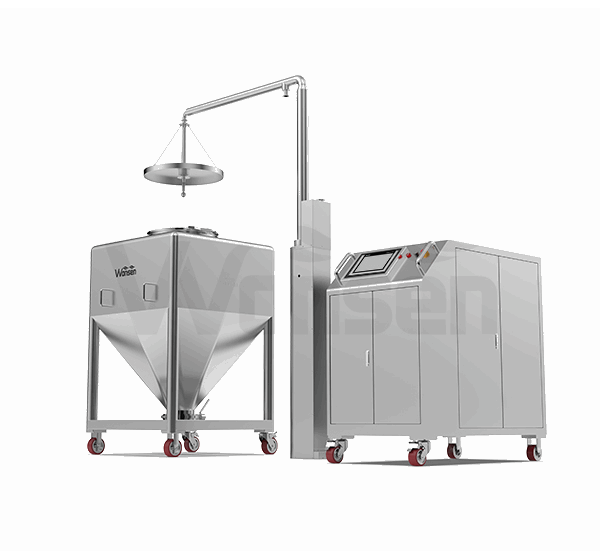

Vertical Hopper Washer
Compatible with hoppers of different sizes and specifications.
Compatible with hoppers of various sizes, this machine features a lifting mechanism for the cleaning cover to wash the inner surface, and a spray gun for the outer surface.
Application
This machine is suitable for cleaning hoppers of various specifications. It is equipped with a lifting device for the cleaning cover to wash the inner surface of the hopper, and a spray gun to clean the outer surface.
Features
360° Cleaning: 360° rotating cleaning balls and high-pressure spray guns for comprehensive inner and outer cleaning.
Built-in Heating: Optional heater included—no external hot water source required.
Smart Lifting: Optional auto-lifting mechanism with an easy-to-use touch screen.
Adjustable Pressure: Cleaning water pressure is continuously adjustable via frequency inverter.
No Residual Water: Standard air-blowing function ensures pipes are completely dry after cleaning.
Technical parameter
| Model | QXD-5 | QXD-10 | |
| Total Power(kw) | 1.5 | 3 | |
| Flow(t/h) | 5 | 10 | |
| Working Pressure(MPa) | 0.3-0.6 | 0.3-0.6 | |
| Compressed Air Pressure(MPa) | 0.6-0.8 | 0.6-0.8 | |
| Compressed Air Consumption(m3/min) | 2 | 2 | |
| Weight(kg) | 130 | 130 | |
| Overall dimensions(mm) | 1700*1200*2600 | 1700*1200*2600 | |
